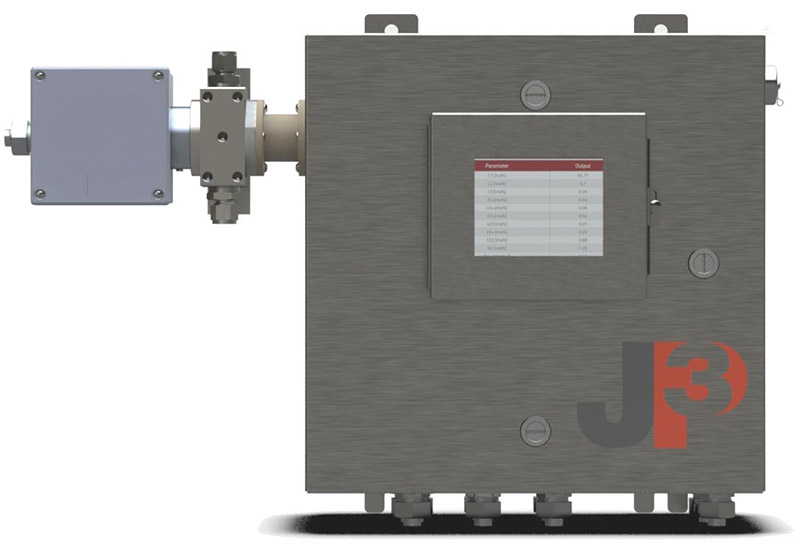

Verax SSG and SSL are cost effective single stream optical analyzers for the oil and gas industry.
Verax SSG Spec Sheet
Verax SSL Spec Sheet
Flow Cell Assembly
Pipeline Interface Optimization
Natural Gas Custody Transfer
Vapor Pressure Measurement
View All Applications
Real-Time Analysis
- Produces stream composition (C1-C9+) and BTU (natural gas) or API gravity (liquids and crude) and more
- 15 second measurement cycle time
- Enables real-time monitoring and control
- Natural gas, NGL, condensate, crude oil and refined fuels capability
- No sampling system, zero emissions, zero lost product
- Requires no analyzer shelter
In-Line and Field Deployable
- Flow cell set in-line, at process pressure and temperature
- Utilizes NIR laser absorption spectroscopy and proprietary chemometric models
- No consumables, waste product, or calibration gas
- Custom flow cell design prevents fouling for maintenance-free use
- Wireless communications & diagnostic capability
Opportunities for Real-Time Analysis
- Natural Gas composition and BTU
- RVP or VPCRx for crude oil and condensates
- Turbine or compressor fuel gas monitoring
- Crude oil API gravity and vapor pressure
- Refined product pipeline composition, gravity, flash point,
- Transmix interface and transition
- Ethane/Propane blending
- Gasoline RVP
